Pouch, Bags & E-Commerece Paper Bag Making Machine Manufacturer

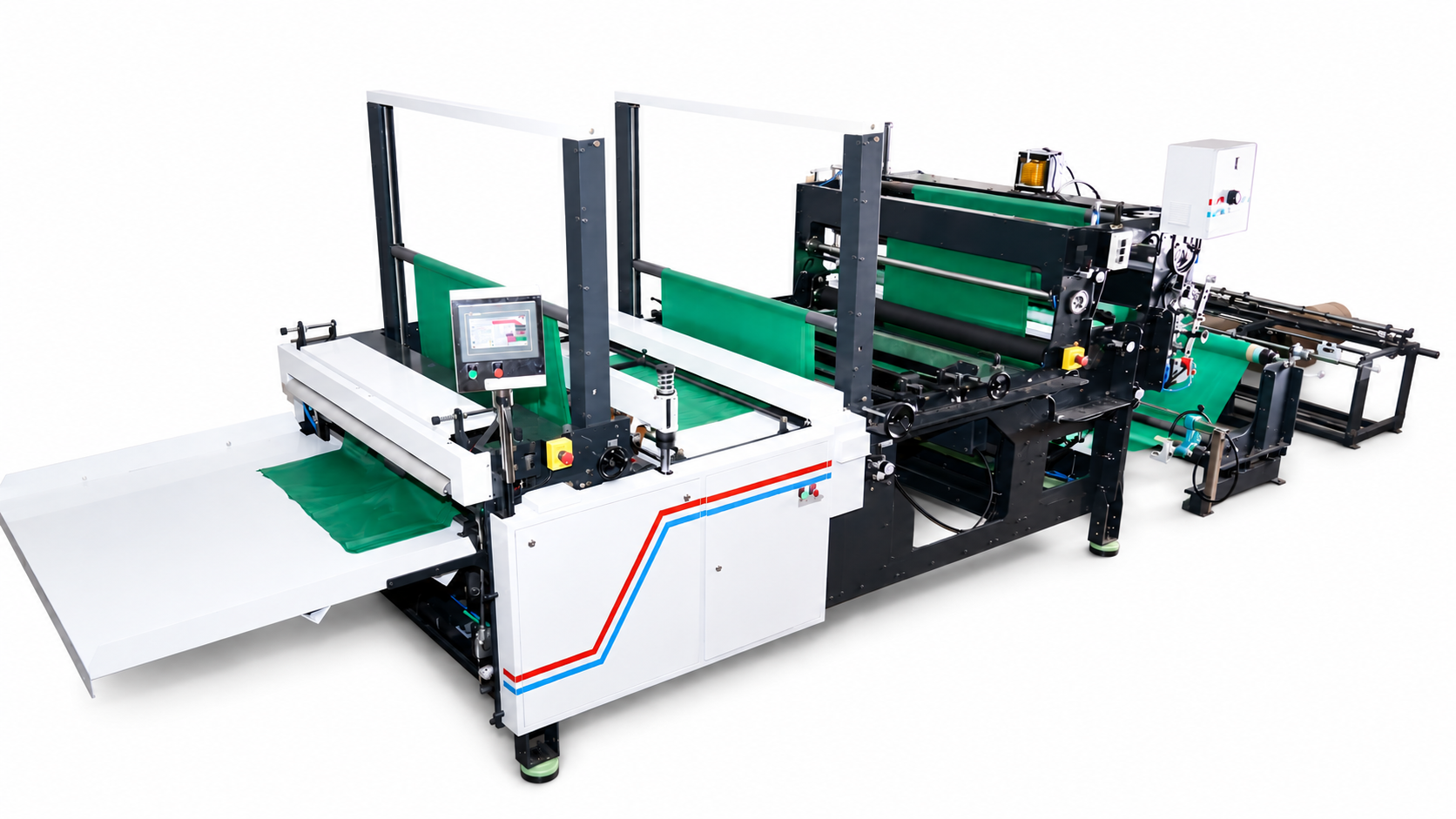

Bottom Seal Bag Making Machine
The Bottom Seal Bag Making Machine is an advanced and efficient solution for manufacturing high-quality plastic bags with bottom sealing configurations. Designed for precision and speed, this machine is ideal for industries producing packaging materials for a wide range of applications, such as retail, food packaging, garment bags, and industrial uses.
Specifications
| Minimum Width | 300mm / 11.8' inch |
| Maximum Width | 1200mm / 47" inch |
| Minimum Length | 200mm / 8" inch |
| Tube Thickness | 40mic to 150mic |
| Production Speed | 120 bags/min* ( With slit seal 120 x 2 bags/min* ) |
| Maximum Web Width | 1200mm / 47" inch |
| Total Power | 13.5kW |
| Machine Dimensions | 4000mm(L) x 1600mm(W) x 850mm(H) |
( * ) Based on Film Thickness & Bag Length
Compatible Materials : Tube form
Plain Or Printed -
- Bio De-Compostable
- LD - LLDPE
- HM-HDPE
- PP
- Main draw roller servo driven, controlled by PLC
- Film cut sensor for loading
- High speed color makr sensor
- Auto ERROR message with machine off
- Print mark protection
- Slit & Seal
- Gusset Sealer or Online Punch
- Addional Roll Loading Unit
- Carry Bag Seal Bar
- Auto Stacker
- Edge Guide System & Auto Tension Powder Brake
- Single structure LASER CUT machine
- Time for installing the machine after unloading is 3 to 4 hrs.
- Wiring type PLUG & PLAY.
